Curtain holdback placement follows one consistent rule: set the hardware one-third of the way up from the bottom hem.1 For a standard 84-inch panel, that puts the holdback 28 inches from the floor. The horizontal position matters just as much: the fixture should sit 3 to 4 inches outside the window frame so gathered fabric clears the glass.3 For a broader overview of styles and mounting options, see the curtain holdbacks overview. This guide covers both measurements in detail: height, distance from the frame, and how each shifts with curtain length and fabric weight.
Quick Answer
How high should curtain holdbacks be placed?
Set the holdback one-third of the curtain length up from the bottom hem: 28 inches from the floor on an 84-inch panel, scaling proportionally for longer or shorter curtains.1 Place the fixture 3 to 4 inches outside the window frame horizontally,3 with the arm projecting 1 to 2 inches from the wall surface so the fabric does not press against the glass.4 Cafe and sill-length curtains use the halfway point instead of the one-third mark.5
Key Takeaways
- Place holdbacks one-third up from the bottom hem: 28 inches from the floor on an 84-inch panel, 32 inches on a 96-inch panel, and so on.
- Set each fixture 3 to 4 inches outside the window frame horizontally, with a 1 to 2 inch wall projection so the gathered fabric stays clear of the glass.
- Cafe and sill-length curtains (36 to 63 inches) are the exception: use the halfway point, not the one-third mark.
- Heavy or lined fabrics require a hardware holdback arm rather than a fabric tieback because heavier curtains do not drape the same way when gathered.
Before You Begin: Tools and Measurements
Good placement starts with accurate numbers. Before marking the wall, gather these items:
- Tape measure – for curtain drop, frame width, and wall projection
- Pencil – for marking screw positions
- Level – to confirm both holdbacks are at the same height on opposite sides of the window
- Drill and appropriate bit – size depends on wall material (drywall, plaster, brick, or concrete)
- Screwdriver – most hand-forged wrought iron holdbacks ship with mounting screws
- Wall anchors – for drywall or plaster installations where no stud is present
You also need two measurements before you touch the wall: the total curtain drop from the rod to the hem, and the width of the window frame from one outside edge to the other. Both are used in the steps below. Estimated time for marking and mounting a pair: 20 to 30 minutes. Difficulty: beginner.
Step 1: Measure Your Curtain Length
By the end of this step, you know your panel’s total drop in inches, which determines the exact holdback height in Step 2.
Measure from the base of the curtain rod (or the bottom of the ring, if rings are used) straight down to the bottom hem of the panel. Do not measure from the top of the rod or from the ceiling. The curtain’s hanging length, not the rod position, is what the one-third rule uses.
Standard Panel Lengths to Know
Curtain panels sold at retail come in a handful of standard lengths. Knowing which category your panels fall into tells you which placement approach applies before you measure anything. Standard floor-length panels use the one-third rule; shorter panels follow a different proportion covered in Step 4.6
| Panel Length | Typical Application | Placement Rule |
|---|---|---|
| 36 in. | Cafe curtain (half-window) | Halfway down the panel |
| 63 in. | Sill length | One-third from the bottom |
| 84 in. | Standard floor length | One-third from the bottom (28 in.) |
| 96 in. | Extended floor length | One-third from the bottom (32 in.) |
| 108 in. | High-ceiling rooms (9 ft.) | One-third from the bottom (36 in.) |
| 120 in. | Floor-to-ceiling (10 ft.) | One-third from the bottom (40 in.) |
Once you have the measured drop, write it down. A 90-inch custom panel uses the same one-third calculation as any other floor-length panel; the standard lengths above are reference points, not restrictions.
Step 2: Calculate Your Curtain Holdback Height
Divide your curtain’s total drop by three. The result is the distance from the bottom hem where the holdback should sit. For a 90-inch panel: 90 divided by 3 equals 30 inches from the hem, or roughly 30 inches from the floor if the panel grazes the floor.1 One widely cited method divides the window opening’s measured height into thirds and uses the lower third as the tieback zone.2
This measurement can also be expressed from the top of the panel: the holdback sits two-thirds of the way down from the rod. On a 90-inch panel, two-thirds down from the top is 60 inches, which leaves 30 inches to the hem. Both framings produce the same mounting point. The two-thirds-from-top phrasing appears in some decorator guides and the one-third-from-bottom phrasing in others; they describe the same position.
The One-Third Rule, Explained
The one-third proportion is the standard across decorating guides because it creates a visually balanced drape on both sides of the holdback. When a holdback is placed too high, closer to the midpoint of the panel, the curtain appears divided in half and the window looks shorter. Placing it at one-third from the bottom keeps the lower portion of the curtain longer and the window visually taller.
Ellen Siloy, Architect and Design Consultant at Designing Idea, states:4
“The recommended holdback height of curtains is two-thirds of the total height of your window treatments.”
Ellen Siloy, Architect and Design Consultant, Designing Idea4
This is the same instruction expressed from the top rather than the bottom. The practical takeaway: keep the holdback below center, in the lower third of the panel’s total length.
The chart below synthesizes the one-third rule across all standard curtain lengths so you can read your mounting height directly without doing the math each time.
Write down your calculated height. You will transfer it to the wall in Step 5.

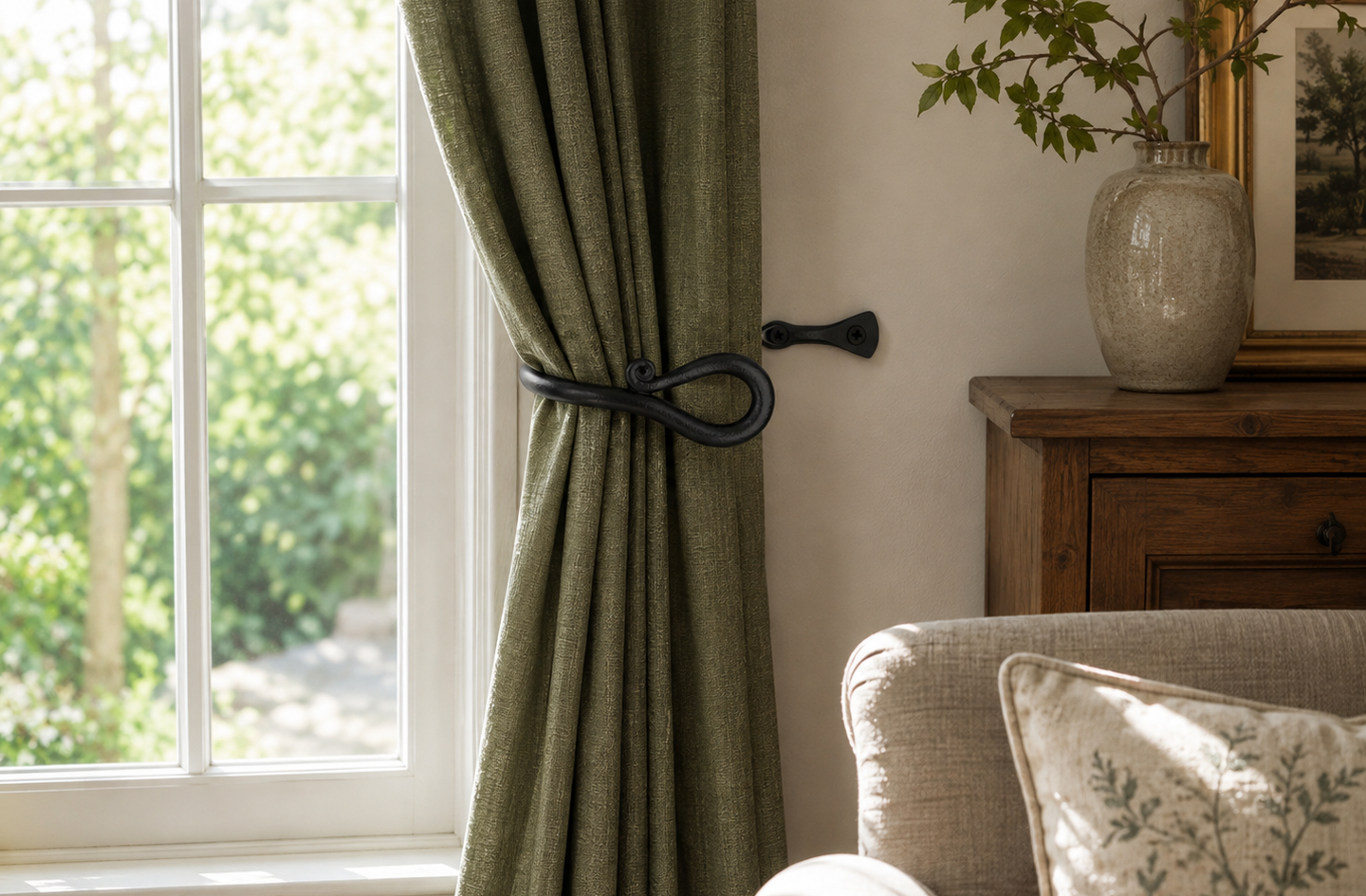

Step 3: Mark the Horizontal Position
By the end of this step, you have a pencil mark at the exact wall position where each holdback screw will go: the right height and the right distance from the window frame.
Measure from the outside edge of the window frame (not the glass, not the casing molding edge, but the outermost edge of the frame) and mark a point 3 to 4 inches outward on the wall.3 This is where the center of the holdback backplate sits. Repeat on the opposite side of the window so both marks are equidistant from the frame.
Why 3 to 4 Inches Matters
The clearance between the holdback and the frame serves two purposes. First, it gives the gathered fabric enough room to stack against the wall rather than bunching against the glass or the casing. Second, it keeps the hardware out of the direct line of sight when the curtain is held open, so the holdback reads as a clean accent rather than a crowded bracket.
At less than 3 inches, the folded fabric often presses onto the window surface, which can trap condensation between the fabric and the glass in colder months. At more than 5 or 6 inches, the holdback is so far from the frame that the curtain has to stretch laterally to reach it, putting uneven tension on the rod rings above.
The Projection Measurement
Beyond the horizontal distance from the frame, the holdback arm also needs enough projection from the wall itself. A projection of 1 to 2 inches from the wall surface is the recommended minimum so the fabric does not press flat against the wall behind the holdback.4 Hand-forged wrought iron holdbacks with a curved arm naturally provide this clearance by design; verify the arm length before mounting if you are working with a particularly heavy or layered curtain.
Once you have both marks on the wall (height from Step 2, horizontal distance from this step), confirm they are level across the window using a spirit level or a laser level. A pair of holdbacks at different heights reads as an installation error even when both follow the one-third proportion correctly.
Step 4: Adjust Placement for Curtain Length and Fullness
The one-third rule is the starting point for most floor-length panels, but two situations call for a different approach: shorter curtains and heavy or very full fabrics.
Short Curtains and Cafe Panels
Cafe curtains (typically 36 inches) cover only the lower half of a window by design. Applying the one-third rule to a 36-inch panel would place the holdback just 12 inches from the bottom, which crowds the hem and leaves very little of the window uncovered when the panel is held open. The better approach for cafe and sill-length panels is the halfway mark: on a 36-inch panel, mount the holdback at 18 inches from the bottom hem.5
For sill-length panels (63 inches), the standard one-third rule applies normally: 21 inches from the bottom. The halfway exception applies specifically to cafe panels where the panel itself covers only a partial window and the visual proportion logic of floor-length panels does not transfer.
If you want to maximize the amount of light coming through a window regardless of panel length, mounting the holdback lower (closer to three-quarters of the drop from the top, or one-quarter from the bottom) works for both sill-length and floor-length panels.5 This leaves more of the window unobstructed when the curtain is tied back but results in a smaller decorative swag of fabric on the held side.
Fabric Weight and Fullness
Curtain panels are typically cut at 1.5 to 2 times the window width to create a full, layered look when closed.6 That fullness ratio determines how much gathered fabric the holdback must manage. A 2x-fullness panel on a 48-inch window has 96 inches of fabric folded to one side when held back, which is substantially more mass than a 1.5x-fullness panel on the same window.
Heavy or lined fabrics, including velvet, blackout lining, and multi-layer thermal curtains, require a hardware holdback arm rather than a fabric tieback. The added weight means the fabric does not drape with the same gentle arc as a sheer or linen panel when gathered; it falls more stiffly and needs a firm mounting point to stay in place.4
| Fullness Ratio | Typical Fabric | Recommended Holdback Type |
|---|---|---|
| 1.5x | Velvet, blackout, lined | Hardware arm required |
| 2x | Cotton, linen blend, semi-sheer | Hardware arm or fabric tieback |
| 2.5 to 3x | Voile, sheer, lightweight linen | Fabric tieback sufficient |
For heavier panels, some decorators mount the holdback 2 to 3 inches lower than the calculated one-third point. This allows more of the fabric weight to hang below the hardware, reducing the tension on the gathered fold at the hold point and keeping the panel from sliding downward over time. The adjustment is minor but worth making when working with curtains above 12 ounces per yard in fabric weight.

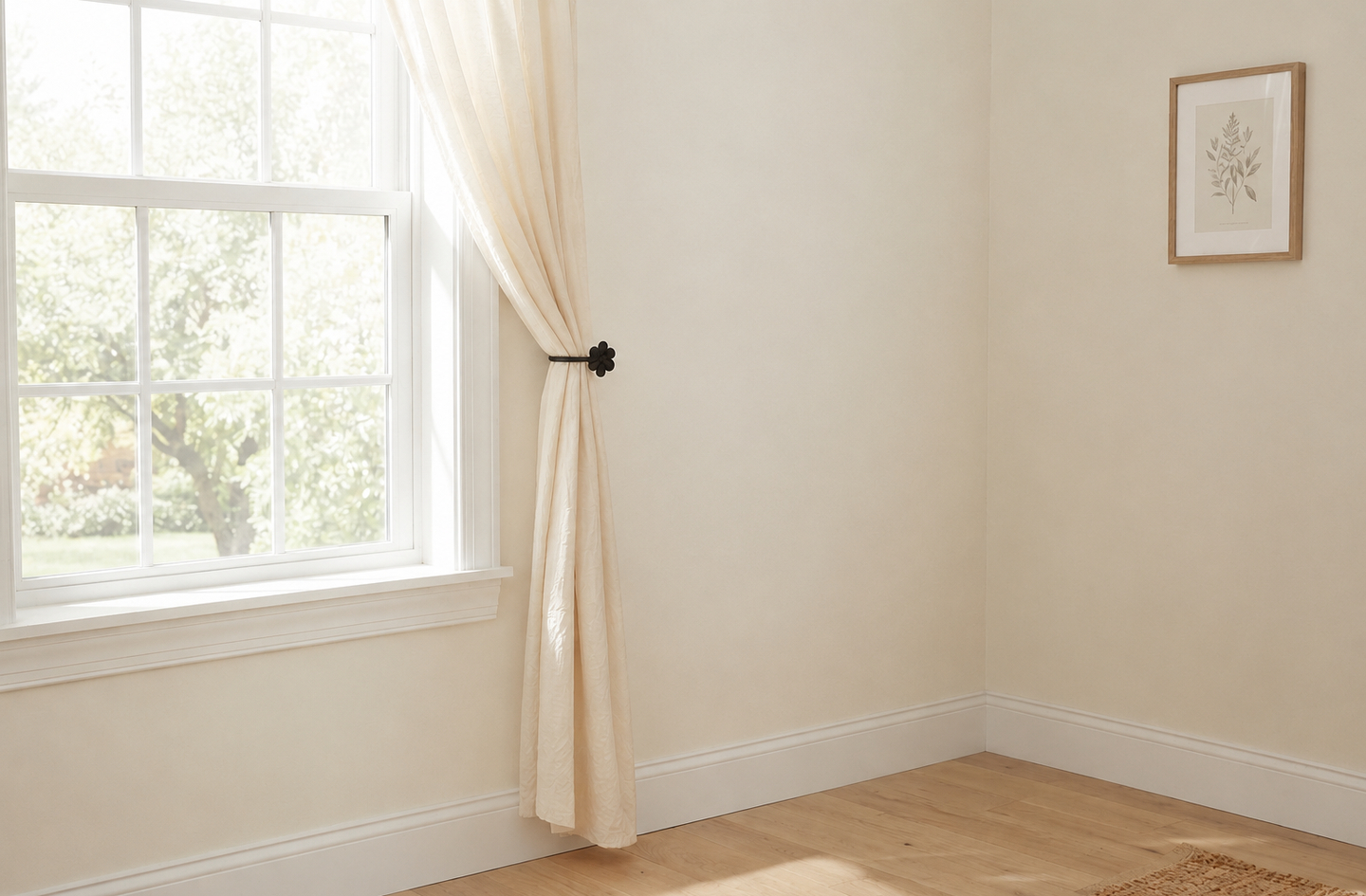

The Loophole Holdbacks are a good example of hardware designed specifically to handle heavier fabrics: the integrated loophole end secures the gathered panel firmly so the weight does not cause the curtain to slip forward over the arm.
Step 5: Mount the Holdback to the Wall
By the end of this step, both holdbacks are mounted, level, and ready to hold the curtains.
Start with the wall type. Drywall mounting without a stud behind the holdback requires a wall anchor rated for at least 10 to 15 pounds per fixture. Most hand-forged wrought iron holdbacks include mounting screws in the package; if wall anchors are not included, select a toggle bolt or expansion anchor matched to your wall material. For brick, concrete, or tile, use a masonry bit and a plastic expansion plug.
Marking and Drilling
Hold the holdback backplate against the pencil mark you made in Step 3 and trace the screw hole positions with a pencil. Remove the holdback and drill pilot holes at the marked positions. For drywall without a stud, insert wall anchors before driving the screws. For wood studs, drive screws directly at the correct torque; overtightening wrought iron mounting plates against a wood stud can strip the screw holes in the plate.
Drive the screws until the backplate sits flush and does not rotate when moderate side pressure is applied. The holdback arm should point horizontally outward from the wall, or angled slightly upward (no more than 10 to 15 degrees), so the curtain fabric drapes over the arm rather than sliding off the end.
Final Level Check
After mounting both holdbacks, place a long level across the two arms (or use a laser level to project a horizontal line across the wall) to confirm they sit at the same height. Even a half-inch difference between sides is visible when curtains are tied back, because the fabric drapes at different angles on left and right. If one side is off, loosen the screws, shift the backplate, and re-drive before hanging the curtains.
The Classic Holdbacks, hand-forged from solid wrought iron and finished with dual-layer zinc galvanization plus powder coating, come with matching mounting screws and work on drywall, wood, brick, and concrete surfaces. The solid construction means the arm does not flex under the curtain’s weight once the backplate is secured, which keeps the fabric at the intended position without gradual drift.
Common Curtain Holdback Placement Mistakes to Avoid
The most common curtain holdback placement error is centering the hardware, which is also the most visually damaging. Here are the three mistakes that consistently produce poor results, along with the corrections.
Centering the Hardware on the Panel
The mistake: Mounting the holdback at the midpoint of the curtain because it “looks balanced.”
Why it happens: The center of the panel feels like a natural midpoint, and some installation guides give a fixed height from the floor without clarifying that the floor measurement depends on curtain length.
The fix: Apply the one-third rule. Placing the holdback at center cuts the window in half visually and makes the room ceiling feel lower. Dropping to the one-third point restores the vertical proportion of the window opening and makes the drape on the held side longer and more elegant.
Mounting Too Close to the Window Frame
The mistake: Placing the holdback directly beside the window casing, within 1 to 2 inches of the frame, so the gathered fabric bunches against the glass or the trim.
Why it happens: Decorators working with narrow walls or windows near corners try to keep the hardware as unobtrusive as possible and move it as close to the frame as possible.
The fix: Maintain the 3 to 4 inch clearance from the frame edge. The extra distance gives the gathered fabric room to stack cleanly outward. If wall space is genuinely limited, use a holdback with a shorter arm projection rather than moving the mounting point closer to the frame.
Using a Fabric Tieback on Heavy Curtains
The mistake: Looping a fabric tieback or ribbon around a velvet, blackout, or lined curtain panel and expecting it to hold the fabric in place throughout the day.
Why it happens: Fabric tiebacks are common and inexpensive; the issue with weight is not always obvious at the moment of installation when the curtains are freshly hung.
The fix: For panels above about 10 to 12 ounces per linear yard, use a rigid hardware holdback arm mounted to the wall. The arm provides a fixed support point that the fabric drapes over and stays on, regardless of how heavy the panel is. A fabric tieback on a heavy curtain gradually stretches or loosens and lets the panel slide inward over the window as the day progresses.

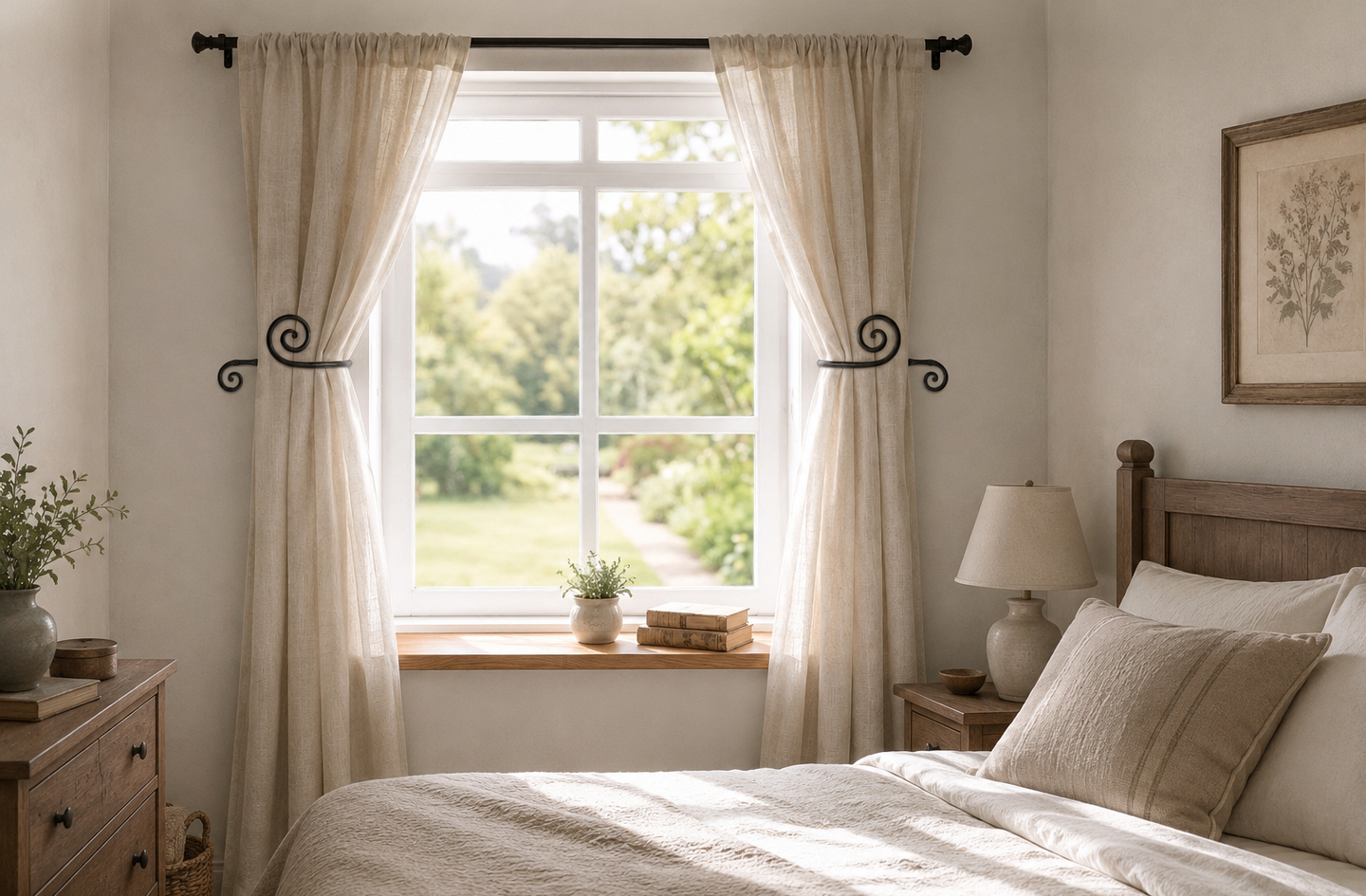

What Correct Placement Looks Like
When both holdbacks are mounted at the one-third point and 3 to 4 inches outside the frame, the curtain should drape in a smooth, continuous arc from the rod to the holdback and then fall straight from the holdback to the floor. The fabric below the holdback should be noticeably longer than the held portion above it, which creates the characteristic hourglass or cascade silhouette that makes floor-length curtains look intentional.
Stand at the doorway of the room and look at the window straight on. The lower hem of the curtain should be close to the floor (within 0 to 1 inch for a clean look, or with a deliberate puddle of 4 to 6 inches for a more formal style). The holdback hardware itself should be visible but not prominent; the iron arm reads as an accent, not as structural hardware. If the curtain is pulled so far back that it disappears behind the holdback when viewed straight on, the fixture is likely too far from the frame and the curtain panel may be shorter than the window width requires for a full, layered appearance.
A simple verification: hang a plumb line or a long level vertically beside the window and check that the lower edge of the curtain on the held side is parallel to it. If the hem angles inward toward the wall, the holdback is pulling the panel unevenly, which usually means the hardware is mounted too close to the frame or the curtain’s ring spacing is inconsistent at the top.
The global curtains and window blinds market was estimated at USD 24.9 billion in 2024,7 which reflects how central window treatments are to home finishing decisions. Getting the holdback position right on a full-length curtain panel is one of the few adjustments that is both free to make and immediately visible in the room’s finished appearance.
Frequently Asked Questions
How high should curtain holdbacks be from the floor?
For an 84-inch floor-length panel, mount the holdback 28 inches from the floor, which is one-third of the panel’s total drop.1 For a 96-inch panel, use 32 inches; for 108 inches, use 36 inches; for 120 inches, use 40 inches. The floor measurement changes with panel length because the rule is proportional, not a fixed number.
How far from the window frame should holdbacks be placed?
Position each holdback 3 to 4 inches outside the window frame edge so the gathered fabric has room to stack against the wall without pressing against the glass or the casing.3 Maintaining this clearance also prevents condensation from trapping between the fabric and the window surface in cooler months.
Do both holdbacks on the same window need to be at the same height?
Yes. Both holdbacks should be mounted at the same height from the floor so the curtain drapes symmetrically on each side. Even a half-inch difference is visible because the fabric hangs at slightly different angles on left and right. Use a level or a laser level across both mounting points before drilling to confirm they match.
Can I use the same holdback height for cafe curtains?
No. Cafe panels (typically 36 inches) are the exception to the one-third rule. For cafe curtains, use the halfway point: mount the holdback 18 inches from the bottom of the panel.5 Applying the one-third rule to a 36-inch panel would place the hardware only 12 inches from the hem, which crowds the bottom of the curtain and reduces the open window area.
What wall anchors should I use for wrought iron holdbacks?
For drywall without a stud, use a toggle bolt or a heavy-duty expansion anchor rated for at least 10 to 15 pounds per fixture. For brick or concrete, use a masonry bit with a plastic expansion plug that matches the screw diameter. Many hand-forged wrought iron holdbacks include mounting screws sized for the backplate; check whether anchors are also included before starting the installation.
Limitations and Edge Cases
- The one-third and halfway rules apply to standard single-panel curtains hanging from a straight rod. Swag valances, pleated drapes with built-in heading tape, and pinch-pleat styles may use different proportions set by the drapery manufacturer.
- Bay windows and angled window frames require individual measurement at each panel rather than a single horizontal reference, because the frame angle means each side differs slightly in projection distance.
- All measurements in this guide reflect US standard curtain lengths; metric equivalents differ and should be calculated from the same proportions rather than rounded to a nearby centimeter figure.
References
- Hunker – The Average Height For Curtain Tiebacks, Leaf Group editorial staff, May 30, 2011. States that tiebacks “look best when placed one-third of the way from the top or bottom of the curtain” with a 100-inch example of 33 inches from the bottom.
- eHow – How to Measure Where to Put Tiebacks on a Curtain, Leaf Group, updated February 15, 2022. Provides the window-division measurement method and cites 39 inches from the floor for typical installations.
- THREE GIRLS – Curtain Tiebacks and Holdbacks: The Ultimate Guide to Types, Placement and Style, November 5, 2025. States that the fixture “should sit 3 to 4 inches out from the frame.”
- Designing Idea – Where to Place Curtain Holdbacks and Tiebacks, Ellen Siloy, Architect and Design Consultant, September 16, 2024. Sources the two-thirds-from-top rule, the 3-inch frame clearance, the hook projection of 1 to 2 inches, and the effect of fabric weight on holdback type.
- Homefords – Where Do You Hang Curtain Holdbacks? A Practical Guide, March 13, 2026. Provides placement variation guidance: halfway for cafe panels, two-thirds down for standard panels, three-quarters down for maximum window reveal.
- The Shade Store – How to Measure for Curtains, June 29, 2026. States that curtain panels should be 1.5 to 2 times the window width for a full, tailored look, defining the standard fullness range.
- Global Market Insights – Curtains and Window Blinds Market Share and Forecast, February 2025. Reports the global market at USD 24.9 billion in 2024, projected to reach USD 57.6 billion by 2034 at a CAGR of 8.9%.
Conclusion
Curtain holdback placement comes down to two measurements: one-third of the panel’s total drop from the bottom hem sets the height, and 3 to 4 inches outside the window frame sets the horizontal position. For cafe panels, use the halfway point instead. Heavy or lined fabrics need a rigid hardware arm to hold the gathered weight in place reliably.
For more on selecting the right holdback style, finish, and size before installation, see the curtain holdbacks overview for a guide to choosing between hardware types.
